Workshop Equipments

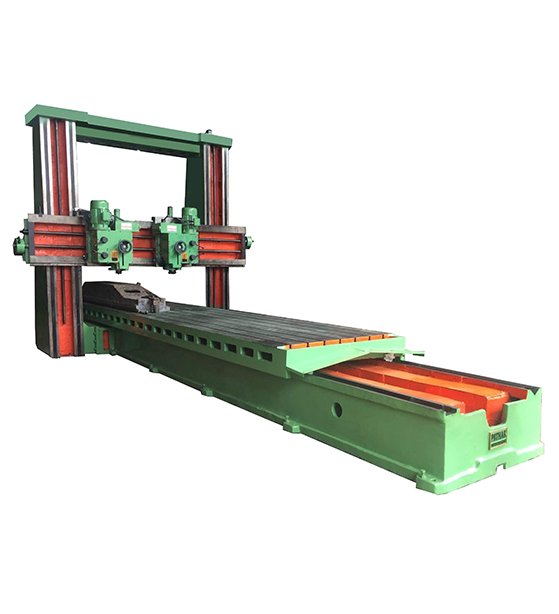

Plano Milling Machine
Plano Milling Machine from Pathak Machines is designed for slotting, surfacing, contouring and precision milling work. As a trusted Supplier in Orissa and Manufacturer in Odisha, it supports stable operation for repetitive engineering tasks. The machine is suitable for tool rooms, die shops, maintenance teams and engineering workshops, offering dependable build quality and practical industrial performance.
Order By Phone
Shipping Information Usually dispatched With In business days
Overview
Built for dependable industrial performance
Product Overview: Plano Milling Machine is a professional workshop equipments solution from Pathak Machines, developed for slotting, surfacing, contouring and precision milling work. It is created for industries that need reliable output, practical operation and dependable engineering machinery from a trusted Manufacturer and Supplier in Odisha and Orissa.
Key Features: This machine is built for repeatable accuracy, operator confidence and long-term reliability. Its operating design focuses on accurate table travel, strong cutting support and repeatable machining output, making it suitable for regular industrial use where accuracy, repeatability and safe handling are important. Pathak Industries gives attention to build quality, alignment, usability and long service support.
Applications and Benefits: The Plano Milling Machine is used across tool rooms, die shops, maintenance teams and engineering workshops. It supports better process control for manufacturers focused on precision engineering and helps production teams handle work with better control, reduced downtime and improved confidence. Whether used for batch work, maintenance jobs or continuous shop-floor activity, it delivers practical value for modern industrial solutions.
Industries Served and Why Choose Pathak Machines: This product is suitable for workshop, factory, warehouse, infrastructure and machinery maintenance applications. Pathak Machines is known as an Industrial Machine Manufacturer and Industrial Equipment Supplier serving Odisha, Orissa and wider Indian markets. Customers choose Pathak Industries for robust construction, application-focused guidance, responsive support and machinery built for dependable performance in real production conditions.
Specifications
Technical details and working capacities
| MODEL | 1218/1225/1235 | 1625/1635/1645 | 2035/2045/2060 |
| Table Size (mm) | 800 x 2100/2800/3800 | 950 x 2800/3800/4800 | 1300 x 3800/4800/6300 |
| Table Stroke (mm) | 1800/2500/3500 | 2500/3500/4500 | 3500/4500/6000 |
| No. of T - Slots | 5 | 6 | 8 |
| Width of T - Slots (mm) | 20 | 20 | 20 |
| Distance Between T -Slots (mm) | 145 | 150 | 150 |
| Table Feed Stepless (mm/min) | 40-600 | 40-600 | 40-600 |
| Table Rapid Stepless (mm/min) | 3000 | 3000 | 3000 |
| Table Feed Motor (hp) | 2/3/3 | 3/5/5 | 5/7.5/7.5 |
| Width Between Column (mm) | 1200 | 1600 | 2000 |
Maximum Height under Spindle (mm) |
1000 | 1000 | 1000 |
| Vertical Traverse of cross Rail (mm) | 1030 | 1030 | 1030 |
| Vertical Feed of Cross Rail (mm/min) | 300 | 300 | 300 |
| Cross Rail Feed Motor (hp) | 3 | 3 | 3 |
| Horizontal Traverse of one Saddle (mm) | 1700 | 2100 | 2500 |
| Saddle Cross Feed Motor (hp) | 3 | 3 | 3 |
| Saddle Cross Feed Stepless (mm/min) | 40-600 | 40-600 | 40-600 |
| Saddle Cross Rapid Stepless (mm/min) | 2200 | 2200 | 2200 |
| Milling Head | |||
| RPM | 80-500 | 80-500 | 80-500 |
| Speeds | Variable (2 step) | Variable (2 step)/div> | Variable (2 step) |
| Motor (hp) | 5 | 5 | 5 |
| Spindle Nose | 150-50 | 150-50 | 150-50 |
| Quill Traverse (manual) (mm) | 100 | 100 | 100 |
| Maximum Cutter Die (mm) | 125/160 | 125/160 | 125/160 |
| Swivel (manual) | .45'' | .45'' | .45'' |
| Standard | - | (standard machine comes with one vertical head) | - |
| Optional | - | Up to four (Two on cross slide ) (Two , One each on Both Columns ) | - |
| Overall Size ( L x B x H) | 2700/3750/5250 x 3035 x 2900 | 3750/5250/6750 x 3435 x 2900 | 5250/6750/9000 x 3835 x 2900 |
Accessories
Standard accessories
Automatic lifting & lowering of cross rail
Fixed or swivel head up to 45
Forced lubrication for guideways & gearboxes
Preventing trouble due to faulty operation
Rapid operation to cross traverse of the milling head
Safety cluthes for electrical & mechanical interlocking is provided for
Speed range covers both carbide & H.S.S. tools
Step less table feeds & rapid system
Suitable for milling,Drilling,Facing Boring & Grinding
Accessories
Optional accessories
Automatic Locking of the Cross Rail
Bellow covers to the guideways
Boring Head on Either of Side Columns
Digital Read Out
Extra Milling Head on Cross Rail
Extra milling head on either or both the columns
Grinding Head On Cross Rail
Optical read out
Right angle milling attachment
