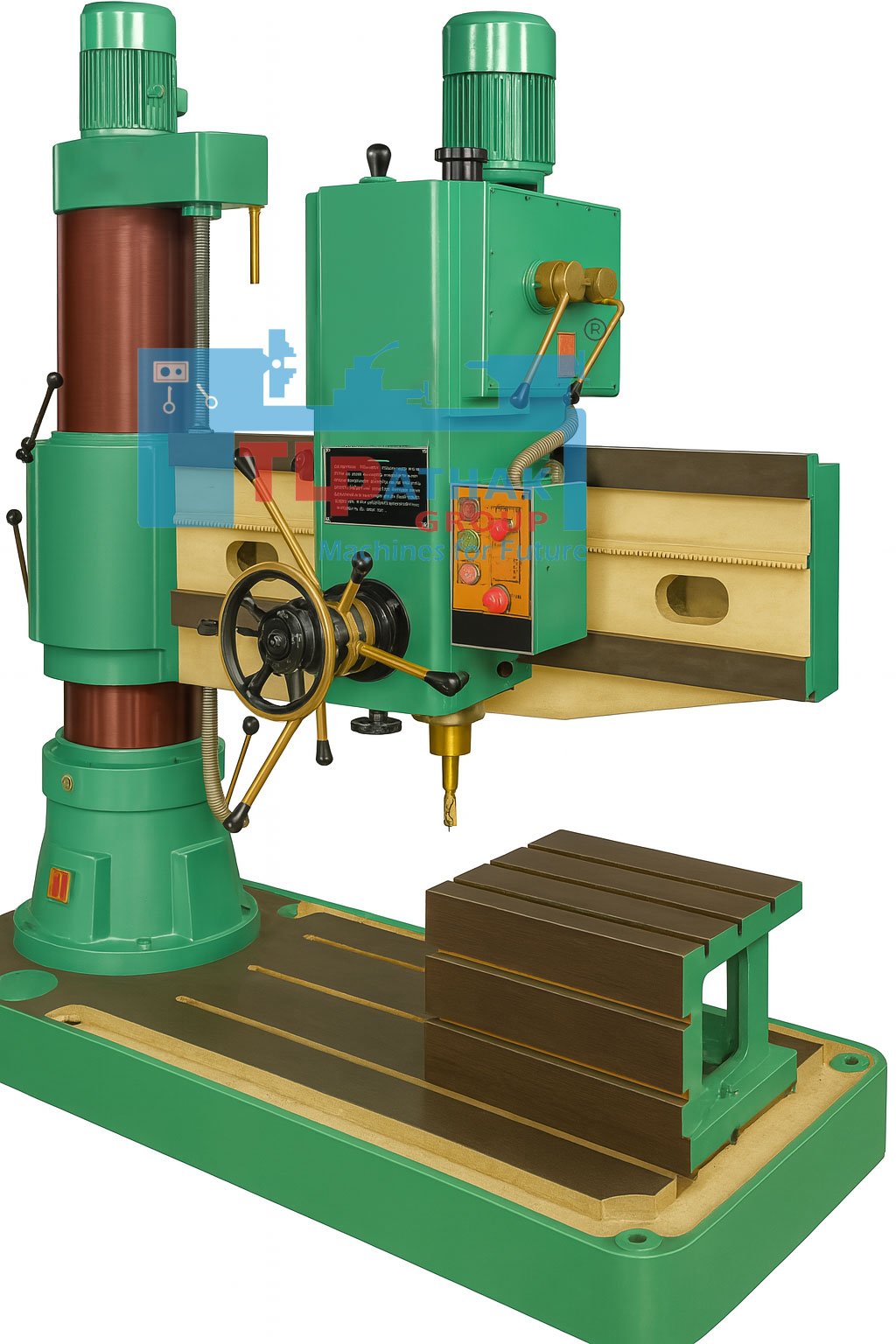

All Geared Radial Drill Machine RD Series

All Geared Radial Drill Machine RD Series from Pathak Machines is designed for drilling, tapping, reaming and hole-making operations. As a trusted Supplier in Orissa and Manufacturer in Odisha, it supports efficient production flow with reduced operator effort. The machine is suitable for fabrication units, repair workshops and production floors, offering dependable build quality and practical industrial performance.

Order By Phone

Shipping Information Usually dispatched With In business days

All Geared Radial Drill Machine RD Series
Overview

Built for dependable industrial performance

Product Overview: All Geared Radial Drill Machine RD Series is a professional drill machines solution from Pathak Machines, developed for drilling, tapping, reaming and hole-making operations. It is created for industries that need reliable output, practical operation and dependable engineering machinery from a trusted Manufacturer and Supplier in Odisha and Orissa.

Key Features: This machine is engineered with a strong frame, practical controls and service-friendly access. Its operating design focuses on stable column construction, accurate quill movement and reliable drive performance, making it suitable for regular industrial use where accuracy, repeatability and safe handling are important. Pathak Industries gives attention to build quality, alignment, usability and long service support.

Applications and Benefits: The All Geared Radial Drill Machine RD Series is used across fabrication units, repair workshops and production floors. It adds dependable capacity for workshops that need robust industrial solutions and helps production teams handle work with better control, reduced downtime and improved confidence. Whether used for batch work, maintenance jobs or continuous shop-floor activity, it delivers practical value for modern industrial solutions.

Industries Served and Why Choose Pathak Machines: This product is suitable for metalworking, production, repair, logistics, recycling and industrial service environments. Pathak Machines is known as an Industrial Machine Manufacturer and Industrial Equipment Supplier serving Odisha, Orissa and wider Indian markets. Customers choose Pathak Industries for robust construction, application-focused guidance, responsive support and machinery built for dependable performance in real production conditions.

Specifications

Technical details and working capacities

MODEL RD40 RD50 RD65
Drilling Capacity (mm) 40 50 65
Drilling capacity in cast - IRON (C.I.) 46 56 70
Tapping in steel 27 42 50
Spindle travel (mm) 150 250 300
Spindle Taper MT-4 MT-4 MT-5
No. of spindle speed /Range 9 (50-805) 9 ( 50-805) 9 (50-805)
Range of power feed 0.115 0.115 0.115
Optional feed 6 0.13-1.10 0.13-1.10 0.13-1.10
Column Diameter (mm) 228 280 330
Max /Min Dist.Spindle center to Col . Center 1160/550 1325/615 1700/700
Horizontal Movement of Drilling Head 510 710 1000
Max/Min Dist.Spindle Nose to Base plate 1030/450 1080/480 1120/460
Vertical Movement of Radial Arm 580 600 660

Working surface of table (mm)

560 x 460 560 x 460 400
Height of Box Table 400 400 1400x850
Working surface of base plate (mm) 800 x 670 1020 x 800 210
Height of the Base plate 170 190 5/1440
Drilling Head motor (HP/RPM) 2/1440 3/1440 3/1440
Elevator Motor(HP/RPM) 1/1440 2/1440 2050 x 990
Base plate dimension (L x W) 1330 x 820 1680 x 930 2440
Total Height of the Machine (Approx) 2250 2360 3100 kg.
Weight (Approx) kg. 1750 2350 2950
Applications

Where this machine fits best

Ship Building

Ship Building

Mining Industries

Mining Industries

Tool Rooms

Tool Rooms

Workshops

Workshops

Small & Medium Scale Industries

Small & Medium Scale Industries

Fabrication Workshops

Fabrication Workshops

Railway Workshops

Railway Workshops

Face and end milling

Face and end milling

Precision drilling

Precision drilling

Fabrication units

Fabrication units

Drilling metal

Drilling metal

Drilling wood

Drilling wood

Drilling plastic

Drilling plastic
