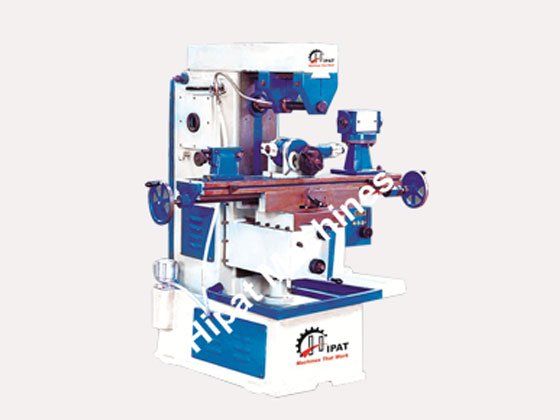

Universal Milling Machine
HIPAT brand heavy duty universal milling machine with latest technology, made of high grade standardized cast iron. Spindle and gears of quality steel, Bearings ( Taper Roller, Ball & Thrust) of genuine quality. Alloy steel Arbour, Carbon Steel Lead Screws with working pressure of table lead screw taken up by thrust bearings. Machine is easy to operate and gives maximum production with minimum fatigue and is enameled in ever shine lasting color.
Base
The base which at the same time serves as a coolant tank dimensioned, coolant pump and the coolant pipes are so dimensioned that sufficient coolant is supplied to the cutter.
Knee
The heavy knee is made as box and rests on a vertial spindle equipped with tank and protected from earth and chips by telescopic tubs. The moveable parts inside are protected from intrusion of foreign matter and coolant. All the hand wheels are removable type.
Table
The worktable is of a very sturdy construction and the dovetail is provided with jig. The table has 3 T- slots and is provided with coolant channels. Accurate Graduation is provided to obtained an exact angle adjustable at each side. The table is provided with Auto feeds ( 2 or 3 Nos.) only in longitudinal direction and is controlled by limit stoppers.
PRICE: ON REQUEST
Order by Phone
0671-2505250
Shipping Information Usually dispatched With In business days.
Pillar Drill Machine
| MODEL | HMOA | HM1 | HM1.5 | HM-2 | HM-3 | HM-4 |
|---|---|---|---|---|---|---|
| Face of Body | 6.5” | 8.5” | 10” | 11” | 12” | 13” |
| Surface Table | 30”*7” | 40”*9” | 48”*10” | 51”*11” | 58”*12” | 64”*13” |
| No. Of T-Slots | 3 | 3 | 3 | 3 | 3 | 3 |
| Size of T-Slots | 3/8” | ½” | ½” | ½” | 5/8” | 5/8” |
| Swivel either side of center | 45 dgr | 45 dgr | 45 dgr | 45 dgr | 45 dgr | 45 dgr |
| Cross | 6” | 7” | 8” | 10” | 12” | 13” |
| Vertical of Traverse | 12” | 13” | 16” | 22” | 24” | 26” |
| Longitudinal Traverse | 14” | 19” | 22” | 25” | 28” | 30” |
| Standard Abour Dia | 1” | 1” | 1” | 1” | 1” | 1” |
| Taper of Spindle | ISO 30 | ISO 40 | ISO 40 | ISO 40 | ISO 40 | ISO 40 |
| No. of spindle speed | 3 & 6 | 6 & 9 | 6 & 9 | 6 & 9 | 6 & 9 | 6 & 9 |
| Range of Spindle Speed | 45 to 550 | 45 to 550 | 50 to 750 | 80 to 680 | 42 to 700 | 42 to 700 |
| Dia of Spindle | 2” | 2.5” | 2.3/4” | 3.1/4” | 3.1/2” | 3.5/8” |
| No. of Longitudinal Feed Table | 2 | 2 | 2 | 2 | 3 | 3 |
| H.P | 1 | 2 | 2 | 2 | 3 | 5 |
| Floor Space (Base) | 26”*17” | 35”*20” | 40”*24” | 46”*26” | 48”*28” | 56”*30” |
| Height | 55” | 62” | 67” | 70” | 73” | 75” |
| Weight (Approx) | 500 Kg. | 1100 Kg. | 1450 Kg. | 2200 Kg. | 2750 Kg. | 3650 Kg. |
| OPTIONAL ACCESSORIES | STANDARD ACCESSORIES | APPLICATIONS |
|---|---|---|
| 1. Protection kit. | 1. In-built coolant pump and piping. | 1. Automobiles |
| 2. Dividing head. | 2. Backlash eliminator. | 2. Die & Mould Manufacturers |
| 3. Rotary table. | 3. Universal table. | 3. Aerospace |
| 4. Slotting attachment. | 4. Arbor suppor & arbor. | 4. Medical Equipment |
| 5. vertical attachment (Universal type). | 5. Tool box. | 5. Textile Machinery |
| 6. Rack cutting attachment. | 6. Test chart& high endurance certificate. | 6. Diamond & Jewellery Industries |
| 7. Digital read out (DRO). | 7. Instruction & maintenance manual. | 7. Allied Machinery |
| 8. Plastic Processing Machinery | ||
| 9. Defence |
