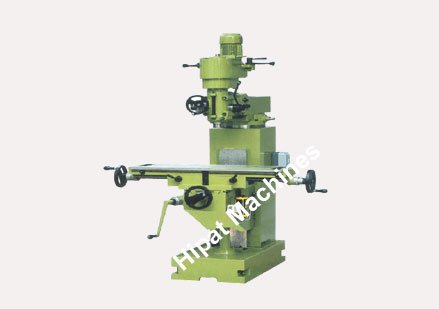

    Ram Turret Milling Machine

    A turret mill has a stationary spindle and the table is moved both perpendicular and parallel to the spindle axis to accomplish cutting. The most common example of this type is the Bridgeport, described below. Turret mills often have a quill which allows the milling cutter to be raised and lowered in a manner similar to a drill press. This type of machine provides two methods of cutting in the vertical (Z) direction: by raising or lowering the quill, and by moving the knee

    PRICE: ON REQUEST

    Get Quotation
    Download Brochure
    Request Callback

    Order by Phone
    0671-2505250

    Shipping Information Usually dispatched With In business days.

    Pillar Drill Machine

    Vertical Turret Ram Type Milling Machine VTR-M1
    Working Area
    Table 300x1070mm
    Slot 3x16mm
    Longitudinal Traverse (Power)* X560mm
    Cross Traverse Y250mm
    Vertical Traverse Z460mm
    Main Drive 2 H.P.
    Head Speed 100 to 1500RPM
    Quill Traverse 125mm
    Heavy Duty Harden Ground Spindle ISO 40 Taper
    Vertical Turret Ram Type Milling Machine VTR-M II
    Working Area
    Table 300x1070mm
    Slot 3x16mm
    Longitudinal Traverse (Power)* X560mm
    Cross Traverse Y250mm
    Vertical Traverse Z460mm
    Main Drive 3 H.P. (Variable Speed)
    Head Speed 100 to 2000 RPM
    Quill Traverse(Power)* 125mm
    Heavy Duty Bearing
    Harden Ground Spindle ISO 40 Taper
    NOTE:
    1. All dimensions are approximate.
    2. Designs are constantly and we reserve the right to modify these specifications without notice
    Optional Mark as *
    OPTIONAL ACCESSORIES STANDARD ACCESSORIES APPLICATIONS
    1. Protection kit. 1. In-built coolant pump and piping. 1. Automobiles
    2. Dividing head. 2. Backlash eliminator. 2. Die & Mould Manufacturers
    3. Rotary table. 3. Universal table. 3. Aerospace
    4. Slotting attachment. 4. Arbor suppor & arbor. 4. Medical Equipment
    5. vertical attachment (Universal type). 5. Tool box. 5. Textile Machinery
    6. Rack cutting attachment. 6. Test chart& high endurance certificate. 6. Diamond & Jewellery Industries
    7. Digital read out (DRO). 7. Instruction & maintenance manual. 7. Allied Machinery
    8. Plastic Processing Machinery
    9. Defence
