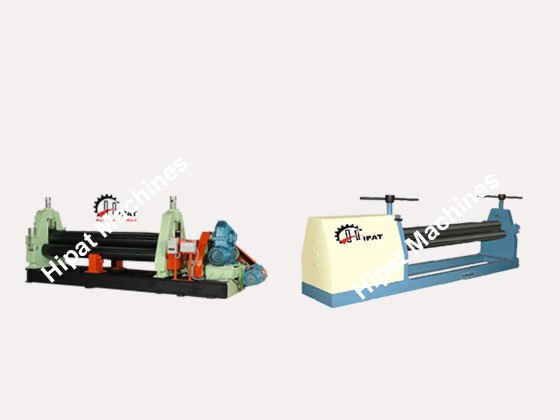

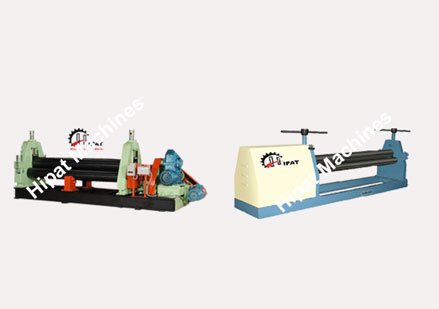

    Plate Bending Machine (Mechanical)

    Experienced and actual users, keeping in mind most rigorous working environment, designed our machine with extensive calculations of stresses and loads on every component. This has created a robust machine with adequate safety factors and with minimum power requirement. It saves upon the electricity consumption, thus effective running cost.

    All components are suitably machined to provide true alignment, which gives a better-finished product. True alignment also enhances the longevity of the machine eliminating breakdown and revenue loss.

    Use of Helical gears, which has better load bearing capacity as compared to Spur Gear, which enhances the longevity of the machine eliminating breakdown and revenue loss.

    Machine is equipped with dynamically designed support roll system, which arrests the skewing of the machine, which again increases the longevity of the machine eliminating breakdown and revenue loss with a better finished product.

    Only maintenance required is oiling at various points.
    Along with our machine we provide the following test and guarantee certificates

    1. Test certificates for the material used.
    2. Ultrasonic test certificate for the forgings used.
    3. Guarantee and test certificate for the motor used.
    4. Guarantee and test certificate for the Gear Box used.
    5. 12 months warranty for our product

    PRICE: ON REQUEST

    Get Quotation
    Download Brochure
    Request Callback

    Order by Phone
    0671-2505250

    Shipping Information Usually dispatched With In business days.

    Technical Specifications

    SR. MODEL CAPACITY DIA.OF TOP ROLL DIA.OF BOTTOM ROLL MAIN MOTOR
    NO. MM MM MM HP
    1 PY 3-12 1250 x 3 100 90 2
    2 PY 6-12 125O x 6 125 105 3
    3 PY 10-12 1250 x 10 150 125 5
    4 PY 12-12 1250 x 12 175 140 7.5
    5 PY 16-12 1250 x 16 190 150 7.5
    6 PY 20-12 1250 x 20 200 160 10
    7 PY 25-12 1250 x 25 240 200 15
    8 PY 3-15 1500 x 3 115 100 3
    9 PY 6-15 1500 x 6 140 11 5 5
    10 PY 10-15 1500 x 10 160 135 5
    11 PY 12-15 1500 x 12 180 150 7.5
    12 PY 16-15 1500 x 16 200 160 10
    13 PY 20-15 1500 x 15 215 170 12.5
    14 PY 25-15 1500 x 25 250 215 20
    15 PY 3-20 2000 X 3 130 105 3
    16 PY 6-20 2000 X 6 160 135 5
    17 PY 10-20 2000 X 10 185 150 7.5
    18 PY 12-20 2000 X 12 205 165 10
    19 PY 16-20 2000 X 16 220 175 12.5
    20 PY 20-20 2000 X 20 230 190 15
    21 PY 25-20 2000 X 25 275 230 25
    22 PY 30-20 2000 X 30 310 260 30
    23 PY 3-25 2500 x 3 150 125 5
    24 PY 6-25 2500 x 6 175 150 7.5
    25 PY 10-25 2500 x 10 200 170 10
    26 PY 12-25 2500 x 12 230 180 15
    27 PY 16-25 2500 x 16 240 200 20
    28 PY 20-25 2500 x 20 260 215 20
    29 PY 25-25 2500 x 25 300 260 30
    30 PY 30-35 2500 x 30 330 280 40
    31 PY 36-25 2500 x 36 345 300 50
    32 PY 42-25 2500 x 42 400 350 50
    33 PY 50-25 2500 x 50 425 375 60
    34 PY 3-30 3000 x 3 175 150 7.5
    35 PY.6-30 3000 x 6 200 170 10
    36 PY 10-30 3000 x 10 240 200 15
    37 PY 12-30 3000 x 12 260 220 20
    38 PY 16-30 3000 x 16 275 225 20
    39 PY 20-30 3000 x 20 290 220 25
    40 PY 25-30 3000 x 25 330 280 40
    41 PY 30-30 3000 x 30 360 330 40
    42 PY 36-30 3000 x 36 385 340 50
    43 PY 42-30 3000 x 42 430 380 50
    APPLICATIONS
    1. ELECTRIC PANNELS
    2. ROOFINGS
    3. BUS BODIES
    4. KITCHEN EQUIPMENTS
    5. GENERATOR ENCLOSURES
    6. & Motor Pulley
    7. STAINLESS STEEL EQUIPMENT’S
    8. COIL CUTTING INDUSTRIES
    9. AIR CONDITION DUCTS
    10. CONTAINER MANUFACTURING
    11. FLOUR MAKING MACHINES
    12. INDUSTRIAL STRUCTURES
    13. RAIL COACHES
    14. TIPPER TRUCKS
    15. WIND MILL MANUFACTURING
    16. TURNINE ENCLOSURES
