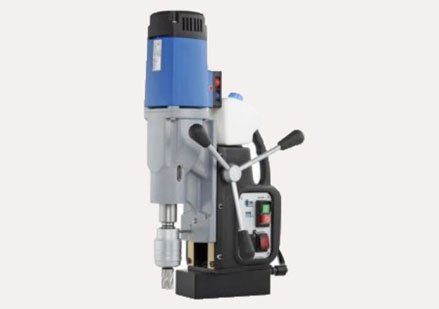

MAB 525 Swivel Base Magnetic Drilling Tapping Machine
PRICE: ON REQUEST
Order by Phone
0671-2505250
Shipping Information Usually dispatched With In business days.
Specification
| EAN | 4250187513701 |
|---|---|
| Cutting Depth | 75 mm |
| Twist Drilling | 20 mm |
| Tapping | M20 |
| Reaming | 20 mm |
| Motor Output | 1600 Watts |
| Stroke | 160 mm |
| Magnet Size | 90 x 180 x 48 mm |
| Magnet Power | 13650 N |
| Weight | 16 Kg. |
| Morse Taper | MT3 |
| Speed Gears | 2 |
| Speed 1 | 70 – 280 min-1 |
| Speed 2 | 180 – 580 min-1 |
| Speed 3 | x |
| Speed 4 | x |
| Advantages | Carbon brush indicator, Internal cabling, KEYLESS drill chuck, Magnet indicator, Oil bath gearbox, Reversible motor, Steady watt control, Variable speed & torque |
| Includes | 1 Attached cooling tank, 1 drill drift & 1 taper drift, 1 Gear rim drill chuck, 1 KEYLESS drill chuck, 1 Safety chain, 1 Transport case, 2 ejector pin, 3 Tapping adapters |
| Core Drilling | 50 mm |
| Countersink | 50 mm |
