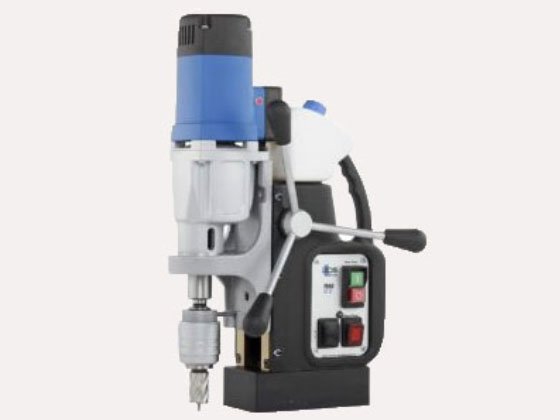

MAB 485 SB Magnetic Drilling Cum Tapping Machine With Swivel Base
PRICE: ON REQUEST
Order by Phone
0671-2505250
Shipping Information Usually dispatched With In business days.
Specification
| EAN | 4250187513688 |
|---|---|
| Cutting Depth | 55 mm |
| Twist Drilling | 18 mm |
| Tapping | M16 |
| Reaming | 18 mm |
| Motor Output | 1150 watts |
| Stroke | 160 mm |
| Magnet Size | 84 x 168 x 41.5 mm |
| Magnet Power | 10400 N |
| Weight | 13 Kg. |
| Morse Taper | MT2 |
| Speed Gears | 2 |
| Speed 1 | 50 – 250 min-1 |
| Speed 2 | 100 – 450 min-1 |
| Speed 3 | x |
| Speed 4 | x |
| Advantages | Carbon brush indicator, Internal cabling, KEYLESS drill chuck, Magnet indicator, Oil bath gearbox, Reversible motor, Steady watt control, Variable speed |
| Includes | 1 Attached cooling tank, 1 drill drift & 1 taper drift, 1 Gear rim drill chuck, 1 KEYLESS drill chuck, 1 Safety chain, 1 Transport case, 2 ejector pin, 3 Tapping adapters |
| Core Drilling | 40 mm |
| Countersink | 40 mm |
