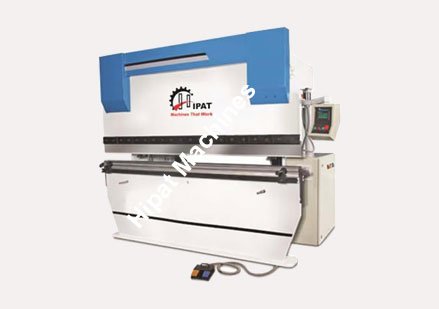

    HIPAT Hydraulic Press Brake are designed and developed and through year of experience in sheet metal working machineries. HIPET Hydraulic Press Brake are developed by keeping latest technology in mind. Both cylinders are mounted at back side of press back and are synchronized for parallesm between ram & table, by providing mechanical links connected with cylinder. The heavy duty steel construction frame is so designed to absorb heavy shocks of overload. All welding edges are properly machined for best weld joins. The electro control is fixed on side wall at conventional place for easy reach of operator. It includes push button pendant and foot switch. Standard “V” Block & “V” Punch and manually operated back gauge system which is front operated are supplied as a standard accessories. Hydraulic components are of reputed make like Videkers, Rexroth, Dowty, Yiken, Polyhydron etc.

    Mitsubishi Controller & Driver

    The controller with monochrome touch screen.
    Manual, Auto, Program mode selection, stroke counter Touch Screen.
    It memorizes 120 (15 Program and each Program 8 bends.) Stroke positions.
    It stores stroke length, height of each bend.
    It allow skipping a step in program if the bend will not required in the job.
    The controller can be connected directly to computer by serial links.
    The controller, drive and screen can be offered with customized.
    High efficient optical liner glass tube scale for perfect position of ‘y’ axis. Repetitive accuracy with + or -0.05mm.
    Program menus are protected by password.

    Option

    Multi axis back gauge.
    High speed MPI (Multi Port Interface) link for operation via PC.
    Anti deflection unit (Manual/Motorized/Automatic).
    Hardened & ground tools and special tooling.
    Sliding sheet support swing away.
    Stoppers for front gauging.
    Hydraulic tool clamping.
    Photo electric finger safety guards.
    Ginger guard for back gauge.
    Automatic lubrication system.
    Extra depth of throat.
    Higher speed versions.
    First fill of hydraulic oil.
    Timing belt drive.

    PRICE: ON REQUEST

    Get Quotation
    Download Brochure
    Request Callback

    Order by Phone
    0671-2505250

    Shipping Information Usually dispatched With In business days.

    Technical Specifications

    Model Tonnage Bending Cap. (In M.S.,UTS 45Kg/mm2) Table length Table Width Clear pass Ram Stroke Open
    Height    		 Throat Depth Speed Approach- Pressing- Return Power H.P. Over all Diamension
    (L x W x H )    		 Approx.
    Weight
    Kgs.
    LHPS NC 215 20 1.6 X 1500 2 X 1250 1500 125 1250 100 250 100 35-9-35 2 1800 x 1500 x 2000 1500
    LHPS NC 320 30 2 X 2000 3 X 1250 2000 125 1700 100 280 200 30-7-30 3 2300 x 1600 x 2000 2500
    LHPS NC 425 40 2 X 2500 3 X 1500 2500 170 2000 100 280 200 40-8-40 3 2700 x 1450 x 2000 3000
    LHPS NC 515 50 4 X 1500 5 X 1250 1500 170 1000 100 280 200 35-7-35 5 1800 x 1500 x 2000 2500
    LHPS NC 520 50 3 X 2000 4 X 1500 2000 170 1500 100 280 200 35-7-35 5 2300 x 1900 x 2200 3400
    LHPS NC 525 50 2.5 X 2500 3 X 2000 2500 170 2000 100 280 200 35-7-35 5 2850 x 1900 x 2200 3700
    LHPS NC 625 65 3 X 2500 4 X 2000 2500 170 2000 150 330 200 30-5-30 5 2850 x 1950 x 2350 3900
    LHPS NC 630 65 2.5 X 3000 3 X 2500 3000 170 2500 150 330 200 30-5-30 5 3350 x 1950 x 2350 4300
    LHPS NC 825 80 4 X 2500 5 X 2000 2500 170 2000 150 350 200 38-6-45 7.5 2800 x 2100 x 2350 4500
    LHPS NC 830 80 3 X 3000 4 X 2500 3000 170 2500 150 350 200 38-6-45 7.5 3350 x 2100 x 2350 5000
    LHPS NC 1025 100 5 X 2500 6 X 2000 2500 170 2000 150 350 200 38-6-45 7.5 2900 x 2200 x 2350 5600
    LHPS NC 1030 100 4 X 3000 5 X 2500 3000 170 2500 150 350 200 38-6-45 7.5 3400 x 2200 x 2350 6200
    LHPS NC 1040 100 3 X 4000 4 X 3000 4000 170 3000 150 350 200 38-6-45 7.5 4250 x 2200 x 2350 7000
    LHPS NC 1225 125 6 X 2500 8 X 2000 2500 220 2000 150 350 300 38-5-40 10 2750 x 2450 x 2400 6200
    LHPS NC 1230 125 5 X 3000 6 X 2500 3000 220 2500 150 350 300 38-5-40 10 3400 x 2450 x 2500 6500
    LHPS NC 1240 125 4 X 4000 5 X 3000 4000 220 3000 150 350 300 38-5-40 10 4150 x 2450 x 2600 7000
    LHPS NC 1625 160 8 X 2500 10 X 2000 2500 220 2000 150 350 300 35-6-40 15 2750 x 2500 x 2500 8800
    LHPS NC 1630 160 6 X 3000 8 X 2500 3000 220 2500 150 350 300 35-6-40 15 3400 x 2500 x 2500 8200
    LHPS NC 1640 160 5 X 4000 6 X 3000 4000 220 3000 150 350 300 35-6-40 15 4200 x 2500 x 2700 8300
    LHPS NC 2025 200 10 X 2500 12 X 2000 2500 220 2000 200 410 300 35-7-35 20 2850 x 2650 x 2700 9800
    LHPS NC 2030 200 8 X 3000 10 X 2500 3000 220 2500 200 410 300 35-7-35 20 3450 x 2650 x 2700 8500
    LHPS NC 2040 200 6 X 4000 8 X 3000 4000 220 3000 200 410 300 35-7-35 20 4200 x 2650 x 2800 10500
    LHPS NC 2530 250 10 X 3000 12 X 2500 3000 300 2500 200 410 300 35-6-40 25 3350 x 2650 x 2800 12000
    LHPS NC 2540 250 8 X 4000 10 X 3000 4000 300 3000 200 410 300 35-6-40 25 4350 x 2650 x 2800 13500
    LHPS NC 3030 300 12 X 3000 15 X 2500 3000 300 2500 200 410 300 30-6-35 30 3450 x 2750 x 2800 12000
    LHPS NC 3040 300 10 X 4000 12 X 3000 4000 300 3000 200 410 300 30-6-35 30 4250 x 2750 x 2900 15000
    LHPS NC 4030 400 16 X 3000 20 X 2500 3000 300 2500 250 500 300 30-6-35 40 3350 x 2900 x 3000 17000
    LHPS NC 4040 400 12 X 4000 16 X 3000 4000 300 3000 250 500 300 30-6-35 40 4300 x 2900 x 3000 18000
    OPTIONAL ACCESSORIES STANDARD ACCESSORIES APPLICATIONS
    1. CNC CONTROL (CYBELEC,DELEM) 1. A pair of lifting links & sheet support. 1. ELECTRIC PANNELS
    2. Multi axis back gauge. 2. One suitable five way die & punch of EN-8 or EN-9. 2. ROOFINGS
    3. High speed MPI (Multi Port Interface) link for operation via PC. 3. Centralized lubrication system with hand pump. 3. BUS BODIES
    4. Anti deflection unit (Manual/Motorized/Automatic). 4. Ram lifting arrangement. 4. KITCHEN EQUIPMENTS
    5. Hardened & ground tools and special tooling. 5. Bending chart. 5. GENERATOR ENCLOSURES
    6. Sliding sheet support swing away. 6. hardened & ground ball screw and shaft, liner motion bearing on guide rods. 6. STEEL TANKS
    7. Stoppers for front gauging. 7. HYDRAULIC POWER PACK 7. STAINLESS STEEL EQUIPMENT’S
    8. Hydraulic tool clamping. 8. COIL CUTTING INDUSTRIES
    9. Photo electric finger safety guards. 9. AIR CONDITION DUCTS/td>
    10. Ginger guard for back gauge. 10. CONTAINER MANUFACTURING
    11. Automatic lubrication system. 11. FLOUR MAKING MACHINES
    12. Extra depth of throat. 12. INDUSTRIAL STRUCTURES
    13. Higher speed versions. 13. RAIL COACHES
    14. First fill of hydraulic oil. 14. TIPPER TRUCKS
    15. Timing belt drive. 15. WIND MILL MANUFACTURING
    16. TURNINE ENCLOSURES
