Hand Shears and Rod Cutters
Hand Shears & Rod Cutters

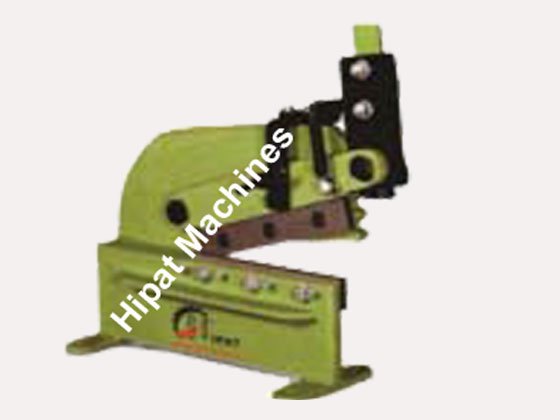

HIPAT Shear is designed for manual cutting of hard sheet metals, it can cut strips, irregular shapes or slit sheet of steel and other materials. It has improved functional facilities and its convenient in operation.
HIPAT Hand shear is operated by repeatedly raising or lowering the lever as you feed the material through the machine, the length of its cut is not a limitation.
Features
. High durability
. Low Maintenance cost
. Trouble free operation
. Rigid cutter body
. Easily replaceable spares
. 4 Edge Blade with one piece material
PRICE: ON REQUEST
Order by Phone
0671-2505250
Shipping Information Usually dispatched With In business days.
Technical Specifications
| HEAVY DUTY GEARED HAND SHEARING MACHINE | ||||||
|---|---|---|---|---|---|---|
| CUTTING CAPACITY –MS | ||||||
| MODEL | BLADE | TYPE | PLATE/SHEET | FLAT | ROUND | Net.Wt (APPROX) |
| UNIT | MM | MM | MM | MM | Kg’s | |
| VHS-200 | 200 | Geared | 7 | 75*8 | 16 | 40 |
| VHS-300 | 300 | Geared | 5 | 50*6 | – | 65 |
| HEAVY DUTY GEARED ROD CUTTER MACHINE | ||||||
|---|---|---|---|---|---|---|
| CUTTING CAPACITY –MS | ||||||
| MODEL | BLADE | TYPE | PLATE/SHEET | FLAT | ROUND | Net.Wt (APPROX) |
| UNIT | MM | MM | MM | MM | Kg’s | |
| VRC-25 | 60 | Geared | – | 50*12 | 25 | 65 |
| VRC-30 | 60 | Geared | – | 50*12 | 28 | 85 |
| SPRING-LEVER HAND SHEARING MACHINE | ||||||
|---|---|---|---|---|---|---|
| CUTTING CAPACITY –MS | ||||||
| MODEL | BLADE | TYPE | PLATE/SHEET | FLAT | ROUND | Net.Wt (APPROX) |
| UNIT | MM | MM | MM | MM | Kg’s | |
| VHS-7 | 175 | Lever | 3 | 40*4 | 8 | 12 |
| VHS-9 | 225 | Lever | 4 | 40*5 | 8 | 22 |
| VHS-13 | 325 | Lever | 4 | 50*4 | 10 | 35 |
| VHS-15 | 375 | Lever | 4 | 50*4 | 10 | 50 |
For stainless steel materials the capacities recommended can be taken as 40% of the above.
Capacities recommended are for the mild steel materials BHM up to 125, tensile stress up to 64,00 psi.
Capacities stated in mm, also hold good for equivalent nearest standard inch size.
R & D being continuous process specifications are subject to change without prior notice.
Standard accessories: Cutting blade, Handle
Extra Spares: Extra cutting blades.
| APPLICATIONS |
|---|
| 1. TOOL ROOMS |
| 2. EDUCATIONAL INSTITUTES |
| 3. WORKSHOPS |
| 4. ROLLING MILLS ETC |
